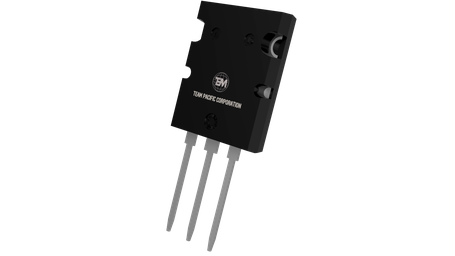

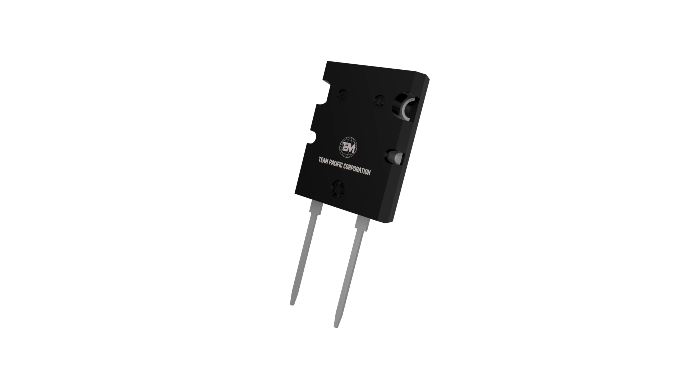

TO-264 Extended
PRODUCT SPECIFICATIONS
| PACKAGE TYPE | TO 247 EXT |
|---|---|
| Frame Type | Extended (without hole) |
| Lead Type | 2L / 3L |
| Frame Material | TAMAC 4 or KFC Full Nickel and Selective Nickel Plated |
| Package Dimension (LxWxH) | inches : 1.832 x 0.783 x 0.196 mm : 46.53 x 19.89 x 4.98 |
| Pad Size | inches : 0.668 x 0.500 mm : 16.97 x 12.70 |
| Maximum Die Size | inches : 0.648 x 0.480 mm : 16.46 x 12.19 |
COMMON SPECIFICATIONS
| Die Attach Medium (soft solder) | Leaded (Pb/Sn/Ag) or Lead Free (Sn/Ag) |
| Wire Size | 5, 8, 10, 12, 15 and 20 mils Al |
| Mold Type | Epoxy Molding Compound |
| Lead Finish | Solder Dip: (Sn/Pb) or Pb Free (Sn/Ag/Cu) Tin Plate: (Pb/Sn) or Pb Free (Sn) |
| Rating | 1200V / 100A |
| Applications | Industrial, Medical, Automotive, Aviation, Renewable Energy |
