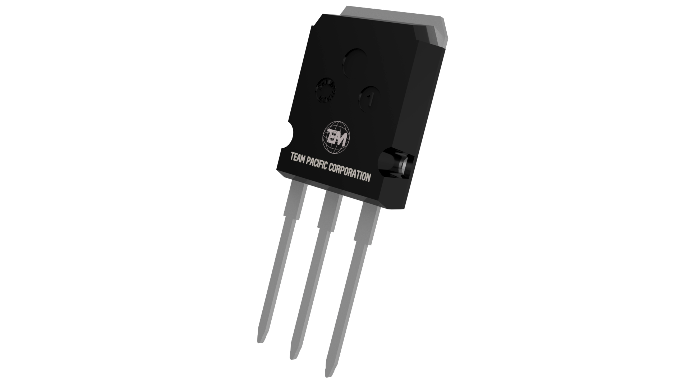

eXp TO-247
PRODUCT SPECIFICATIONS
| PACKAGE TYPE | eXp TO-247 |
|---|---|

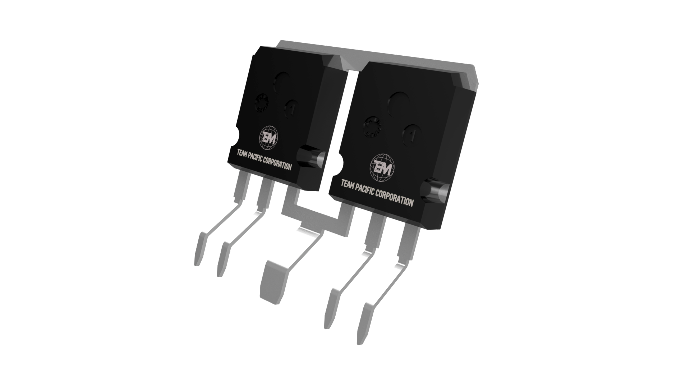

| Frame Type | Extended (without hole) and Twin (Dual) |
| Lead Type | 3L / 5L |
| Frame Material | TAMAC 4 or KFC Full Nickel and Selective Nickel Plated |
| Package Dimension (LxWxH) | inches : 1.662 x 0.626 x 0.198 mm : 42.21 x 15.90 x 5.03 |
| Pad Size | inches : 0.500 x 0.575 mm : 12.70 x 14.61 |
| Maximum Die Size | inches : 0.402 x 0.556 mm : 10.21 x 14.12 |
COMMON SPECIFICATIONS
| Die Attach Medium (soft solder) | Leaded (Pb/Sn/Ag) or Lead Free (Sn/Ag) |
| Wire Size | 5, 8, 10, 12, 15 and 20 mils Al |
| Mold Type | Epoxy Molding Compound |
| Lead Finish | Solder Dip: (Sn/Pb) or Pb Free (Sn/Ag/Cu) Tin Plate: (Pb/Sn) or Pb Free (Sn) |
| Rating | 1200V / 75A |
| Applications | Industrial, Medical, Automotive, Aviation, Renewable Energy |
| Features | Isolated Diode Rectifiers and other 3-Lead Discrete Devices Flexible Terminal lead Assignment ( Gate / Emitter / Collector) |
