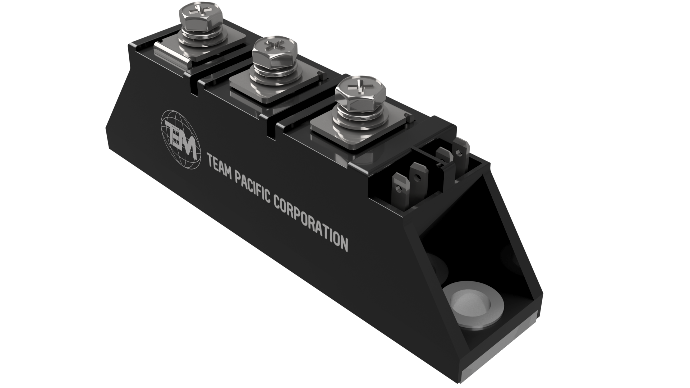

VPMP1
PRODUCT SPECIFICATIONS
|
Product Description |
Versatile Power Module Package 1 (VPMP1) |
|
Current / Voltage rating |
Up to 200A Up to 1700V |
|
Main Features |
Compact module design Industry standard package Solderless signal terminal Screw type power terminals Copper baseplate |
|
Application |
Flexible configuration: Half bridge, Thyristor / Diode Doubler, Diode |

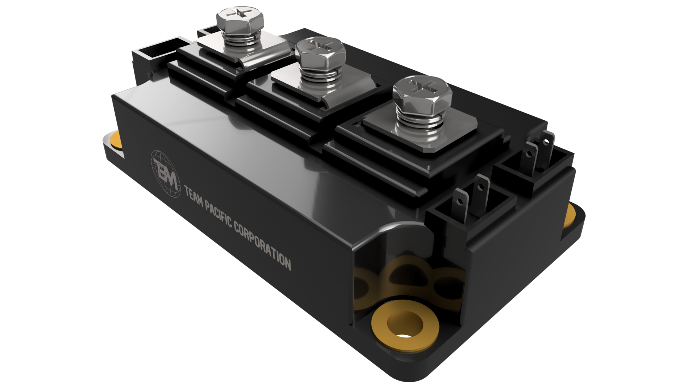

VPMP2
PRODUCT SPECIFICATIONS
|
Product Description |
Versatile Power Module Package 2 (VPMP2) |
|
Current / Voltage Rating |
Up to 400A Up to 1700V |
|
Main Features |
Industry standard package High isolation voltage Corner holes for better mounting Solderless signal terminals Screw type power terminals Isolated copper baseplate M6 power connector |
|
Application |
Flexible configuration: Half bridge, Thyristor / Diode Doubler, Diode |

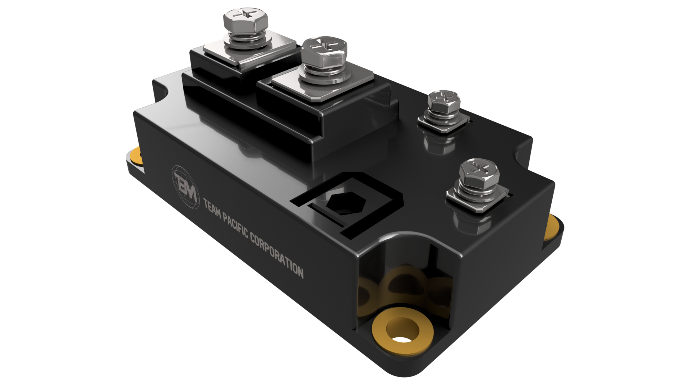

VPMP3i
PRODUCT SPECIFICATIONS
|
Product Description |
Versatile Power Module Package 3i (VPMP3i) |
|
Current / Voltage Rating |
Up to 600A Up to 1700V |
|
Main Features |
Industry standard package High isolation voltage Corner holes for better mounting Screw type power terminals Isolated copper baseplate M6 and M4 power connector |
|
Applications |
Flexible Configuration: Single switch, Single switch with diode |

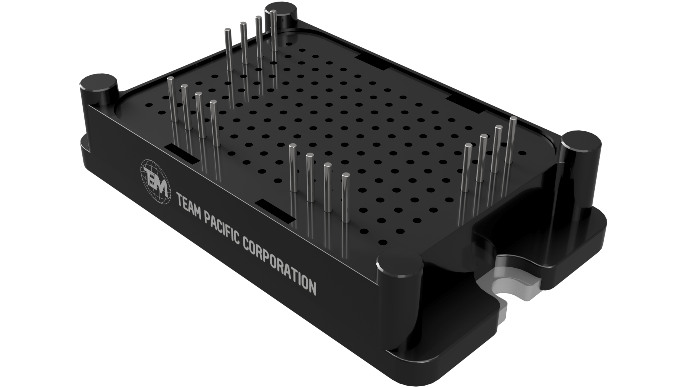

VPMP5
PRODUCT SPECIFICATIONS
|
Product Description |
Versatile Power Module Package 5 (VPMP5) |
|
Current / Voltage Rating |
Up to 240A Up to 1200V |
|
Main Features |
Flexible pin configuration Center edge holes for better mounting Isolated copper baseplate Low leakage current capability High surge current capability |
|
Applications |
Flexible Configuration: Half bridge, Thyristor/Diode Doubler, Diode |

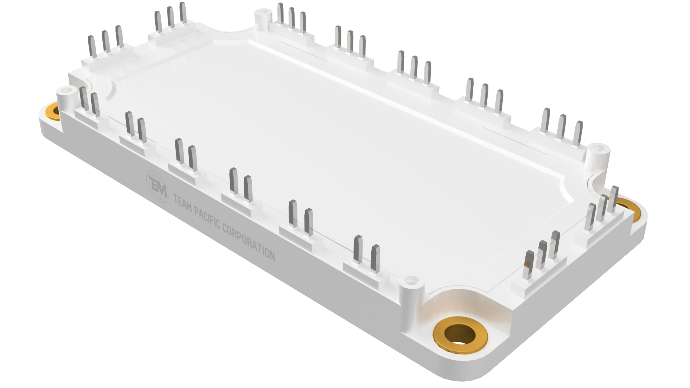

VPMP6
PRODUCT SPECIFICATIONS
|
Product Description |
Versatile Power Module Package 6 (VPMP6) |
|
Current / Voltage Rating |
Up to 300A Up to 1700V |
|
Main Features |
Industry standard package Flexible pin configuration Corner holes for better mounting Isolated copper baseplate Low leakage current capability High surge current capability |
|
Applications |
Flexible Configuration: Half bridge, Thyristor/Diode Doubler, Diode, Single Switch, Single Switch with Series Diode |
