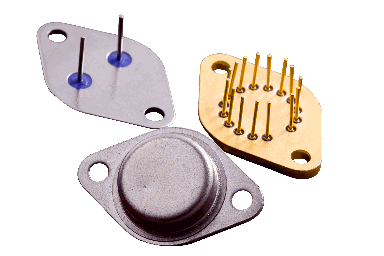

Hermetically Sealed Metal Cans​

PRODUCT SPECIFICATIONS

PACKAGE TYPE	TO18, TO46, TO39, TO5, TO3, TO72
Frame Type	Metal Cans
Lead Type	2L / 3L / 4L / 8L / 10L
Die Attach Medium	Eutectic: Gold preform (Au/Si) Epoxy: Conductive and Non-conductive
Wire Size	1.25, 2, 3, 5, 8, 10, 12, 15 mils Al
Hermeticity	High hermeticity
Environmental / Reliability Test	Fine leak / Gross Leak Stabilization Bake or Heatsoak Temperature Cycle Centrifuge PIND Test
Lead Finish	Solder Dip (SnPb) or Pb-free (SnAgCu)
